Custom AOL Oscillating Knife Blades

Premium Tungsten Carbide Oscillating Blades & Knives for AOL Digital Cutters

Upgrade your manufacturing output with our industrial-grade tungsten carbide AOL oscillating knife blades, engineered as reliable, long-lasting replacement cutters for AOL CNC digital cutting machinery. Formulated from premium-grade submicron tungsten carbide particles and micro-ground using high-precision CNC multi-axis tooling, these knives ensure unrivaled hardness, excellent edge rentention, and smooth, burr-free slitting on a massive scale of flexible materials.

These ultra-sharp vibrating knife replacements offer structural compatibility with the full range of AOL tooling systems (including C, Y, Z, and T-series configurations). They excel in the clean processing of multi-layer corrugated sheets, honeycomb boards, composite foams, soft plastics, synthetic leathers, apparel fabrics, and complex industrial composites. They serve as ideal AOL digital cutter knives to boost throughput across automated sign & graphics, modern packaging, fashion textile, and precision gasket manufacturing facilities worldwide.

Core Performance Advantages

Ultra-Fine Grain Carbide Base Constructed from pure, dense tungsten carbide alloy to provide critical hardness and abrasion resistance, radically cutting back tool wear during continuous long runs.	Micro-Ground Edge Sharpness Advanced finishing technology creates an incredibly sharp, faultless edge geometry, ensuring exact tolerances and repeatability across every AOL blade batch.
Flawless Drop-in Compatibility Machined to strict OEM physical parameters for immediate installation into all AOL digital oscillating cutting machine toolheads without setup modifications.	Clean, Frayless Material Output The polished, acute cutting wedge completely eliminates stringing, crushing, or structural fraying on porous fabrics, dense rubbers, and delicate liners.
Versatile Converting Capabilities Handles an array of flexible textiles, dense graphic foams, structural board configurations, polymer films, heavy carpets, and technical carbon fibers.	Flexible OEM Blueprint Service Along with a vast inventory of standard configurations, we offer responsive custom sizing and tailored rake angles based on client sketches, CAD files, or physical models.

Technical Matrix

Alloy Grade	Premium Submicron Tungsten Carbide Alloy
Hardness Standard	91.5 – 93.5 HRA
Material Density	14.5 – 14.9 g/cm³
Intended Compatibility	AOL CNC Oscillating / Vibrating Knife Digital Plotters
Finishing Method	Mirror Polished Flanks / Superfinished Cutting Bevels
Processable Materials	Technical Textiles, Natural Leather, Box Board, Gasket Rubber, EVA Foams, Composite Layers
Custom Fabrication	OEM Profile Replication, ODM Custom Lengths, Blueprint Sizing Allowed

Available Blade Models & Dimensions

Model	Overall Size
C038b-4	38×4×0.63mm
C040b	40×6×0.63mm
C040bT	40×6×1mm
C045b	45×6×0.63mm
C140b	40×6×1mm
C145b	45×6×1mm
C147b-4	47×4×1mm
C150b-1	50×6×1mm
C165b	65×6×1mm
C175b	75×6×1mm
LC038b-4	38×4×0.63mm
T033	33×5.5×0.63mm
T038	38×5.5×0.63mm
T131	32×5.5×1mm
T133	33×5.5×1mm
T138	38×5.5×1mm
Y022a	22×8×0.63mm
Y025a	25×8×0.63mm
Y028a	28×8×0.63mm
Y028a-1	28×8×0.63mm
Y028b	28×8×0.63mm
Y030a	30×8×0.63mm
Y032a	32×8×0.63mm
Y032a-1	32×8×0.63mm
Y032b	32×8×0.63mm
Y034a	34×8×0.63mm
Y036a	36×8×0.63mm
Y038a	38×8×0.63mm
Y045a	45×8×0.63mm
Z003-1H	30×6×1mm
Z004-1	30×6×1mm
Z015a	30×6.3×0.63mm
Z016a	30×6.3×0.63mm
Z025a	30×6.3×0.63mm
Z026a	30×6.3×0.63mm
Z026b	30×6.3×0.63mm
Z030a	30×6.3×0.63mm
Z035a	30×6.3×0.63mm
Z035b	30×6.3×0.63mm
Z045a	30×6.3×0.63mm
Z060a	30×6.3×0.63mm
Z116a	30×6×1mm
Z126a	30×6×1mm
Z135a	30×6×1mm
Z145a	30×6×1mm
ZP030b	30×5.5×0.64mm
ZP140bh	40×6×1mm
ZS026b	29×6×0.63mm
ZS126b	29×6×1mm
Custom Blade	Custom Size As Drawing/Sample

Industrial Applications

Automated Packaging & Graphics Converting

Perfectly optimized for slicing custom corrugated blanks, heavy cardboard, point-of-purchase display structures, polymer films, and promotional signage panels.

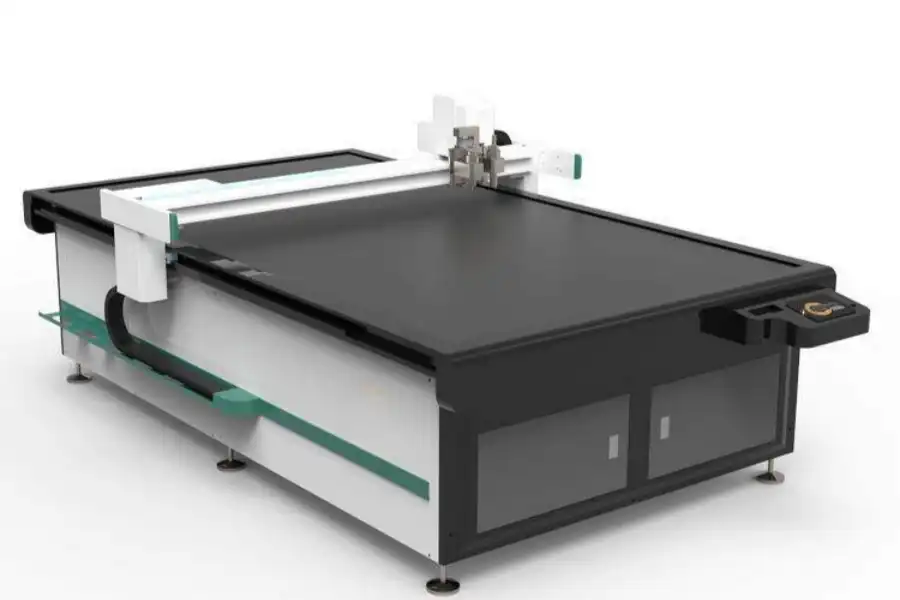

Textiles, Apparel & Upholstery Cutting

Ensures parallel precision when processing high-volume rolls of upholstery fabrics, natural hide leathers, technical woven layers, and synthetics for automotive trim.

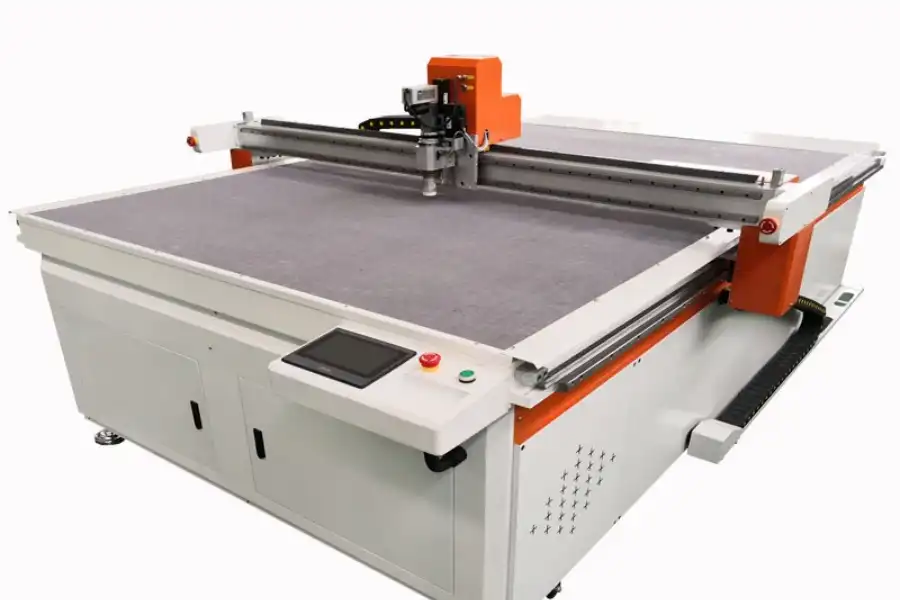

Industrial Foam & Technical Gasket Production

Maintains sharp vertical accuracy during high-speed vertical vibration for thick acoustic foams, dense industrial rubbers, plastic sheets, and technical core composites.

Frequently Asked Questions

Are your replacement cutters completely seamless within AOL tooling channels?

Yes. Every item in our catalog is engineered to replicate the mechanical fit of standard AOL digital cutting heads, offering an accurate, drop-in replacement part solution.

What density and range of soft material stock can these blades handle?

Our tungsten tools comfortably sever various flexible media including dense hide leather, garments, heavy structural boxboard, cushioning foam, rubber sheets, and carbon composites.

Can you accommodate custom bevel geometry or proprietary shank dimensions?

Absolutely. We provide complete OEM and ODM fulfillment, adapting specific edge lengths, thickness tolerances, or specialized angles based directly on your CAD prints or master physical samples.

Is it possible to request evaluation samples for live factory machine testing?

Yes, we support our commercial partners by providing complimentary test blade samples for performance benchmarking. Clients are responsible solely for the courier logistics fees.
