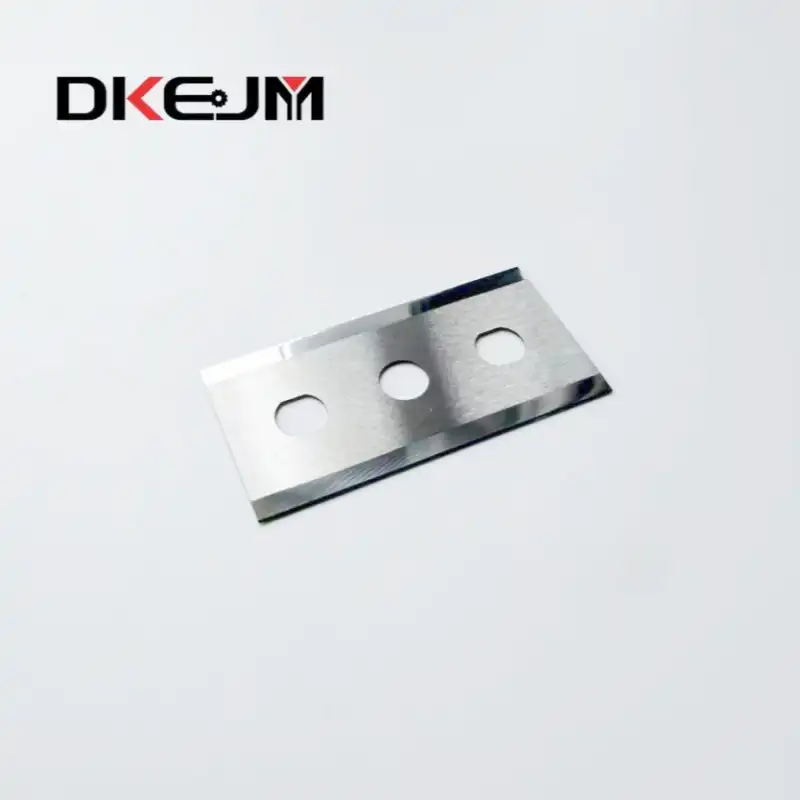

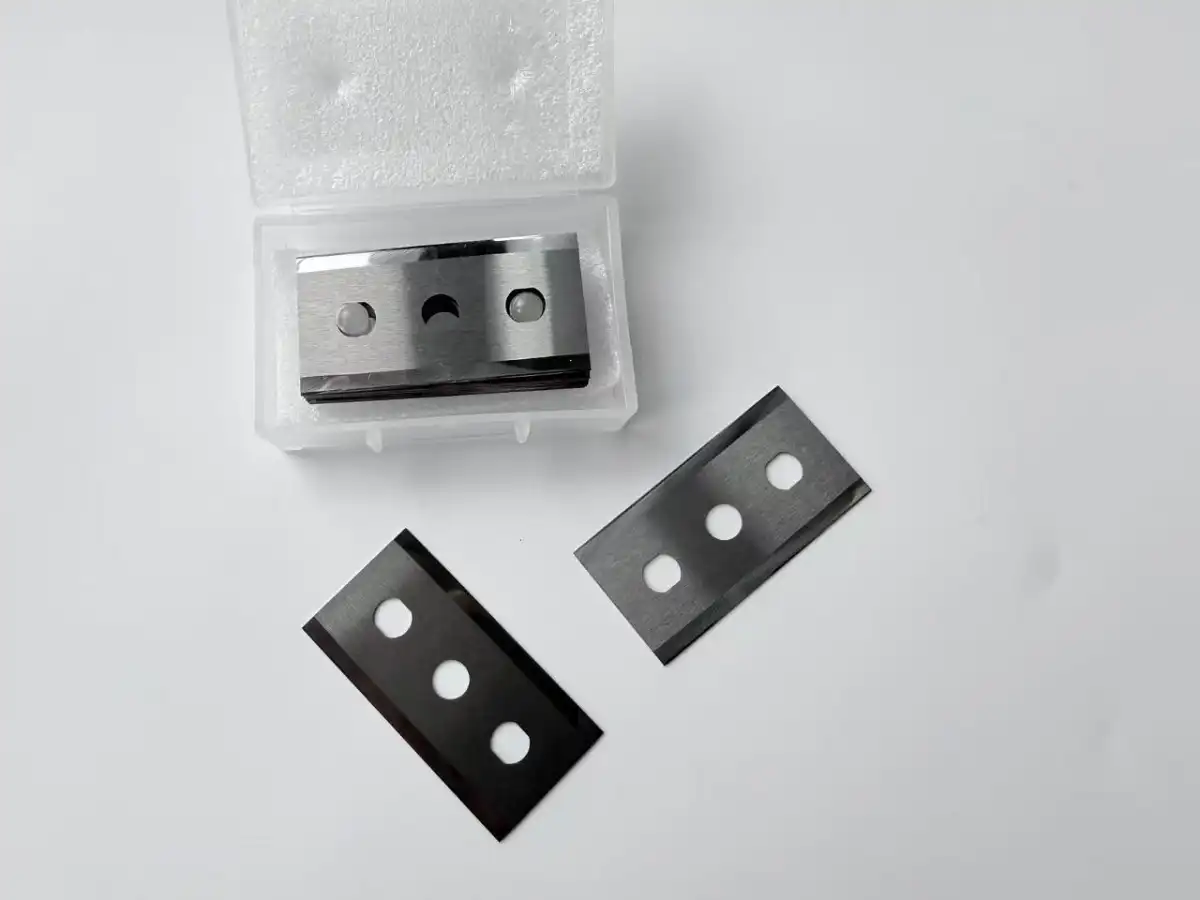

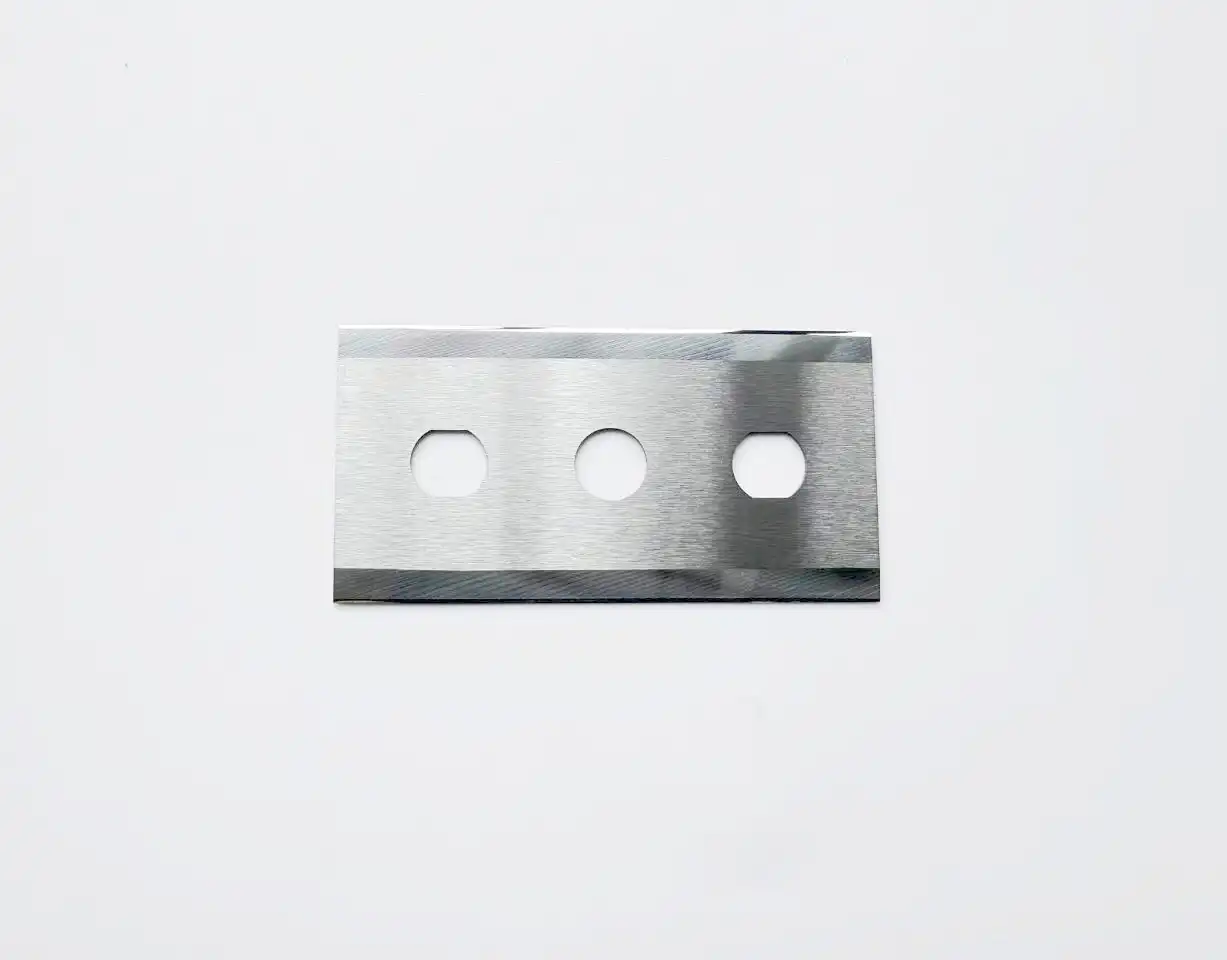

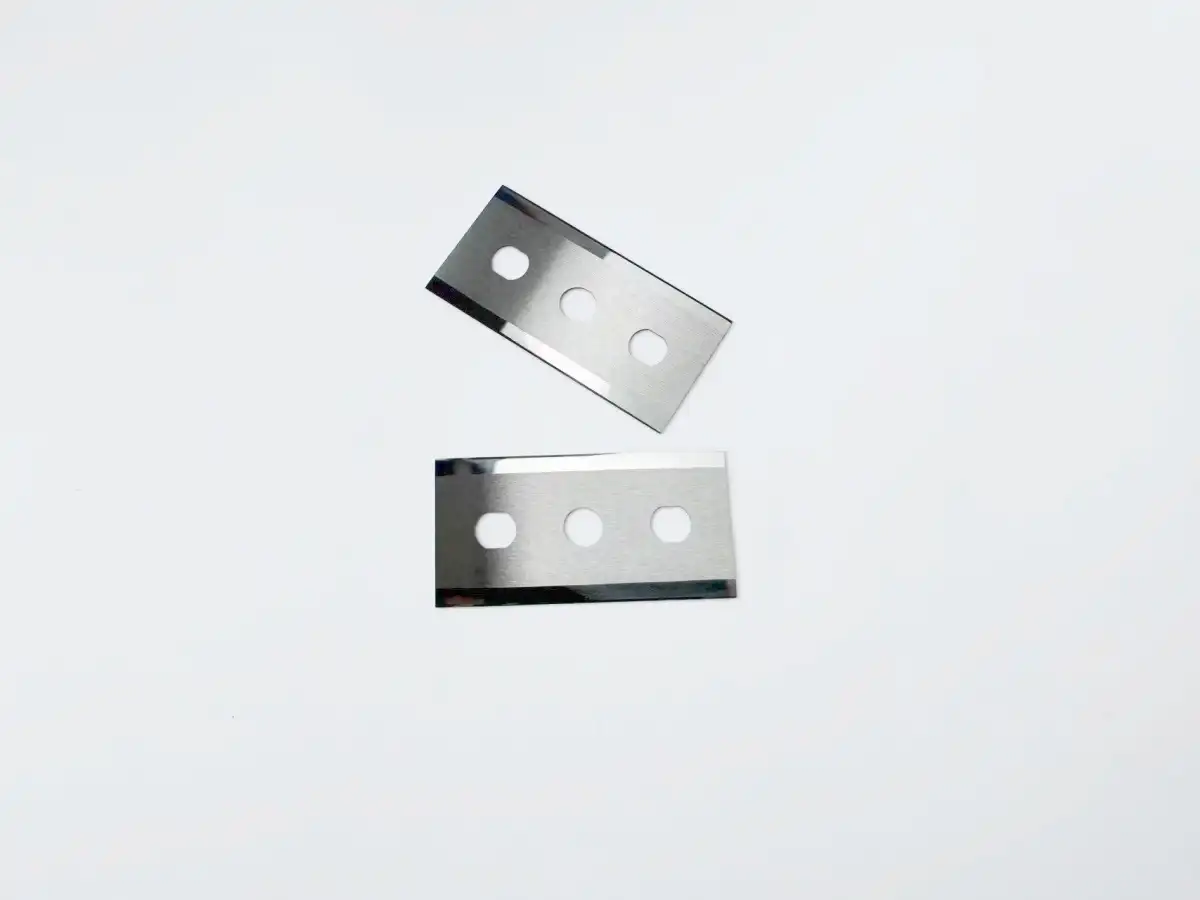

Carbide Blade for Thin-Film Slitting
Thin film and foil punish steel edges: within days a steel slitter starts pushing material instead of cutting it. Tungsten carbide changes the economics – at HRA 87-92 the edge holds its geometry for weeks of continuous running, keeping cuts clean and changeovers rare.
The mirror-polished edge matters as much as the hardness: less friction means less heat, no melted residue on tacky films, and slivers that fall away instead of jamming the nip.
Hole layout is what makes a blade fit your holder. We machine bore, pin holes and bolt circles to your drawing, and can add coatings or special edge angles for demanding films.
MaterialTungsten carbide
HardnessHRA 87-92
EdgeMirror polish
HolesTo drawing
HardnessHRA 87-92
EdgeMirror polish
HolesTo drawing
Key Advantages
01Extreme Edge Life
Carbide hardness far beyond tool steel keeps the cutting geometry stable for weeks of continuous slitting.
02Clean Cuts on Thin Webs
Sharp polished edge slices film and foil without burrs, tearing or delamination.
03Low-Friction Mirror Finish
The polished face sheds adhesive and residue – ideal for tacky films and tapes.
04Precision Hole Positions
Bore, pin holes and bolt circles machined to drawing for a direct fit on your holder.
05Coating Options
Optional surface coatings and special cutting angles for abrasive or high-temperature applications.
06OEM & ODM from Drawing
Custom carbide compositions and geometries produced from drawings, samples or machine model.
Product Parameters
| Brand Name | Dekeer |
| Product Name | Tungsten Carbide Slitter Blade for Thin Film Slitting |
| Application | High-Speed Slitting of Thin Film, Aluminum Foil, Plastic Film, Bags and Tapes |
| Material | High-Purity Tungsten Carbide, Vacuum Sintered |
| Hardness | HRA 87-92 |
| Feature | Extreme Wear Resistance, Mirror-Polished Edge, Precision Holes |
| Service | Full Customization, OEM & ODM, Engineering Support |
Dimensions
| Diameter | Thickness | Bore |
| Custom | Custom | Custom |

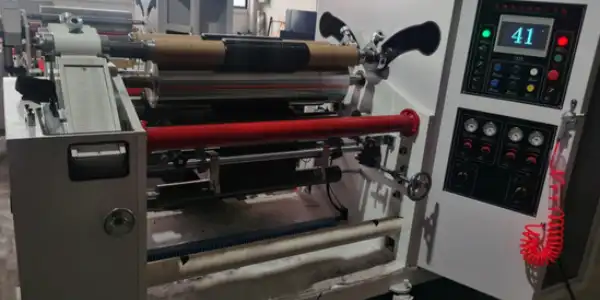

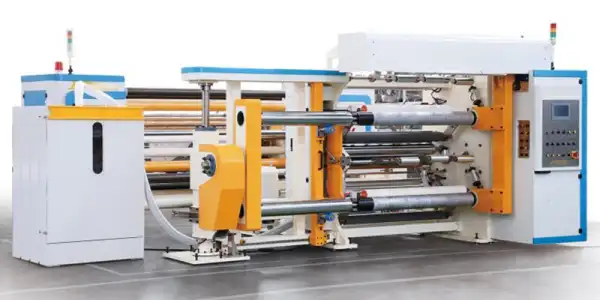

Application Scope
Thin Plastic Film
Stable slitting of BOPP, CPP and PE films down to a few microns.

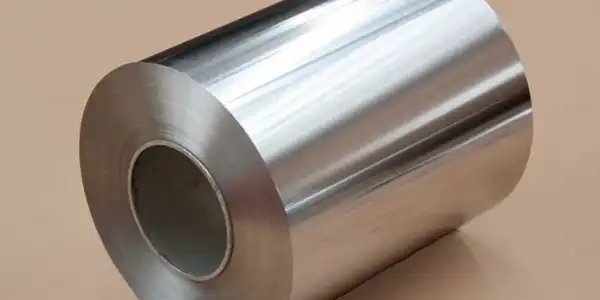

Aluminum Foil
Clean, dust-free cuts on household and converting foils.
Adhesive Tapes
Mirror edge resists adhesive build-up on long tape slitting runs.
Why Choose Dekeer
Factory Direct
Carbide blades sintered and ground in our own plant.
OEM & ODM
Diameter, hole positions, cutting angle and coating to your drawing.
Engineering Support
Our engineers help you choose steel, geometry and coating – replies within 24 hours.
Fast Lead Time
Popular sizes in days; custom carbide specs in 7-15 working days.
From Powder to Finished Blade
01
CARBIDE SINTERING
High-purity tungsten carbide powder sintered into a dense, uniform blank.
02
CNC GRINDING
Edge and faces ground sharp with mirror polish to reduce friction.
03
HOLE MACHINING
Mounting holes and pin holes machined with precise positioning.
04
INSPECTION
HRA hardness, edge finish and hole positions verified per batch.
FAQ
How long does a carbide edge last vs steel?
Depending on material, carbide commonly runs 10-20 times longer than tool steel before regrinding.
Can you copy the three-hole layout of my current blade?
Yes – send the blade or its drawing and we reproduce bore, hole diameter and positions exactly.
Do you offer coated carbide blades?
Yes – coatings and special edge preparations are available for abrasive or sticky materials.
What is the minimum order for custom carbide?
Small batches are fine; we produce single replacement blades and production series alike.
Need carbide blades for thin film?
Send diameter, holes and material – our engineers reply with a quote within 24 hours.
