Engineered for High-Speed Presses and Demanding Runs
Built around European carbon steel, the SE series doctor blade targets high-speed gravure presses, flexo lines and industrial coaters. Its harder temper (630-650 HV) keeps the edge sharp and dimensionally stable even when the press runs flat out.
Ink transfer stays even and streaks, color drift and density variation stay out of the picture. Tuned for solvent-based inks and varnishes, the blade holds its metering quality at web speeds of up to 350 m/min, so long production runs finish on time without unscheduled stops.
Key Advantages
Premium European steel Coils are rolled from high-grade European carbon steel, giving premium consistency from batch to batch. | Rated for 350 m/min presses Stays stable on the fastest gravure and flexo presses, holding metering quality at full speed. |
Long life on long runs The hardened edge wears slowly through continuous high-volume production, keeping changeovers rare. | Ground to tight tolerances Uniform thickness and excellent straightness deliver precise, repeatable ink metering. |

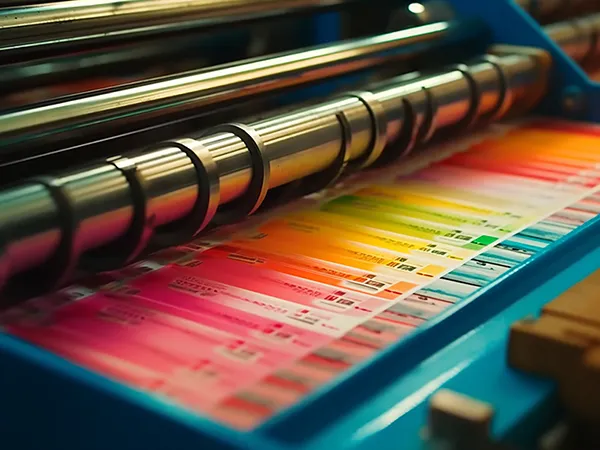

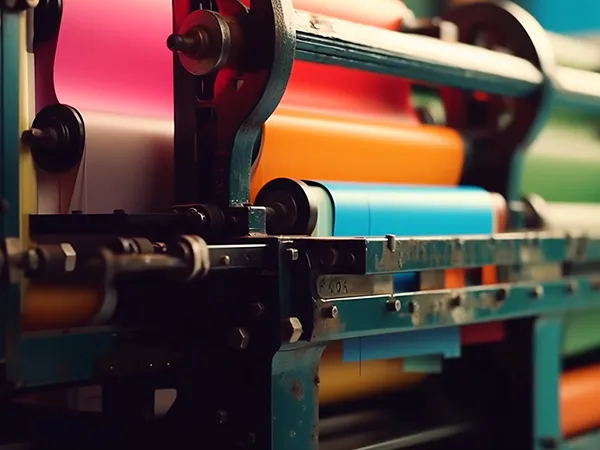

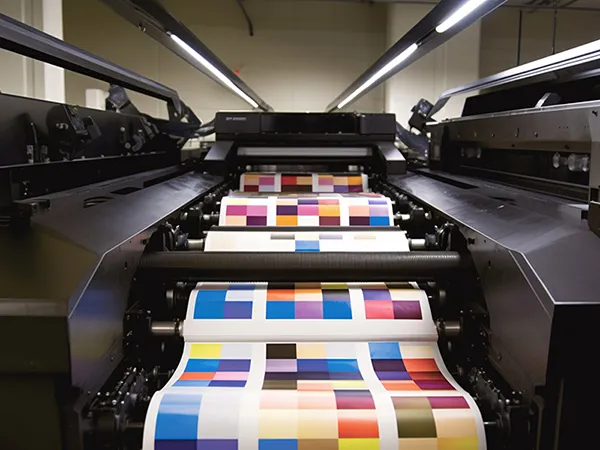

Solvent-ready Performs reliably with solvent-based inks and varnishes across many press configurations. | One blade, three processes Covers high-speed gravure, flexo printing and industrial coating with a single product family. |
Product Parameters
| Material | High-Grade European Carbon Steel |
| Width Range | 10mm – 60mm |
| Width Tolerance | ±0.1mm |
| Thickness Range | 0.152mm – 0.203mm |
| Thickness Tolerance | ±0.005mm |
| Hardness | 630-650HV |
| Tensile Strength | 1850-2100MPa |
| Straightness | ≤0.5mm / 3000mm |
Available Dimensions
| Width | Thickness | Length |
| 10mm | 0.15mm | 100m |
| 30mm | 0.15mm | 100m |
| 30mm | 0.20mm | 100m |
| 35mm | 0.15mm | 100m |
| 35mm | 0.20mm | 100m |
| 40mm | 0.15mm | 100m |
| 40mm | 0.20mm | 100m |
| 50mm | 0.15mm | 100m |
| 50mm | 0.20mm | 100m |
| 60mm | 0.15mm | 100m |
| 60mm | 0.20mm | 100m |
